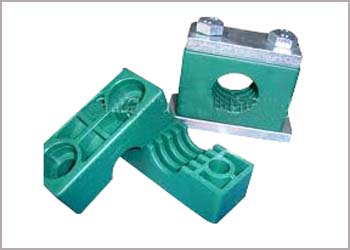

Heavy Pipe and Tube Clamps
Heavy Pipe and Tube Clamps   Heavy Pipe and Tube Clamps
The standard range of heavy series pipe - tube clamps are normally used for support piping system in general applications. W.P. range of pipe - tube clamps with more then 1500 PSI ( 100 BAR) and up to 8000 psi (600 BAR) find application in Steel / stainless steel Piping System.

These pipe clamps are supplied as :
• Individual Pipe Clamp with welding plate
• Individual Pipe Clamp without welding plates
• Multilayer construction
• Rail nuts construction

Features :
• Designed as per DIN-3015 part-2
• Standard Pipe - Tube clamps available in Plastic Polypropylene and Polyimide , Aluminum clamp bodies with Steel / S.S. plates & bolts
• W.P. range above 1500 PSI (100 BAR) for application in Steel / stainless steel piping system




Material and Design of Clamp Body
• Polypropylene : Colour Green
• Polyamide : Colour Black
• Thermoplastic Elastomer : Colour Black
• Aluminum : Colour Natural
• Alternative materials and coulours in addition to the above stated standard is available upon request.

Materials and surface finishing of metal parts
• Carbon Steel Trivalent or Yellow zinc plated
(Standard Trivalent plated)
• Carbon Steel Phosphated
• Stainless Steel - SS 304 or SS 303
• Stainless Steel - SS 316
